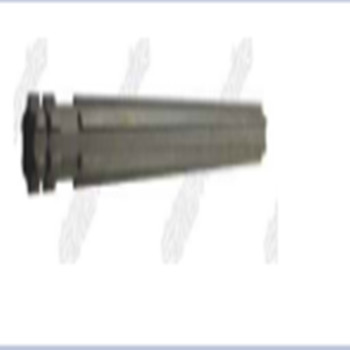

联轴器轴#645#D48407

产品描述

联轴器与轴的配合公差标准本文简介:联轴器与轴的配合公差标准弹性膜片联轴器与轴的配合公差标准一般情况下,轴一般标0~+0.005如果是不常拆的话,就是+0.005~+0.01的过盈配合就可以了,如果要常常的拆装就是过渡配合就可以了。我们还要考虑到轴材料本身在转动时候的热胀,所以轴承越大的话,最好是-0.005~0的间隙配合,最大也不要

联轴器与轴的配合公差标准本文内容:

联轴器与轴的配合公差标准

弹性膜片联轴器与轴的配合公差标准

一般情况下,轴一般标0~+0.005

如果是不常拆的话,就是+0.005~+0.01的过盈配合就可以了,如果要常常的拆装就是过渡配合就可以了。我们还要考虑到轴材料本身在转动时候的热胀,所以轴承越大的话,最好是-0.005~0的间隙配合,最大也不要超过0.01的间隙配合。还有一条就是动圈过盈,静圈间隙。

①当弹性膜片联轴器内径公差带与轴公差带构成配合时,在一般基孔制属过渡配合的公差代号将变为过盈配合,如k5、k6、m5、m6、n6等,但过盈量不大;当轴承内径公差代与h5、h6、g5、g6等构成配合时,不在是间隙而成为过盈配合。

②弹性膜片联轴器外径公差带由于公差值不同于一般基准轴,也是一种特殊公差带,大多情况下,外圈安装在外壳孔中是固定的,有些膜片联轴器部件结构要求又需要调整,其配合不宜太紧,常与H6、H7、J6、J7、Js6、Js7等配合。
